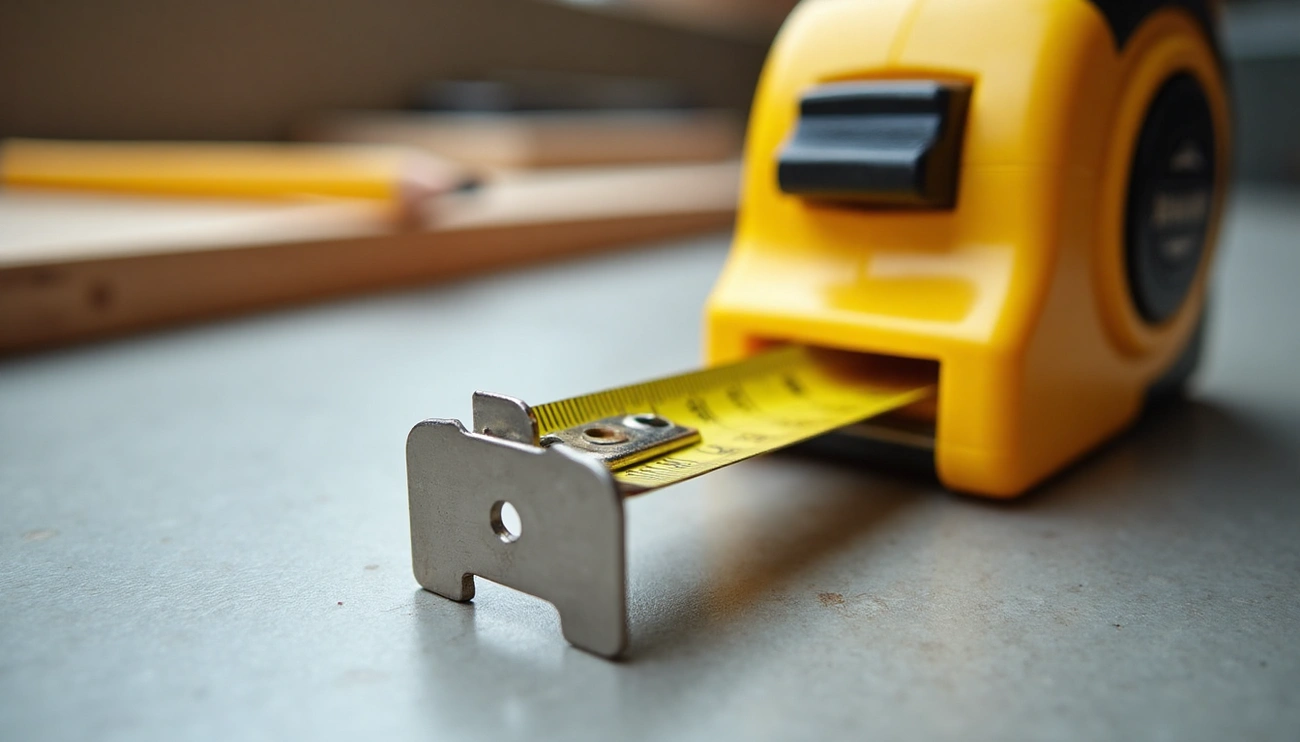

The end of a tape measure moves to account for its hook thickness. This play, called “true zero,” ensures accurate measurements whether you push against or pull from an object. The movement equals the thickness of the hook, typically about 1/16 inch.
Why the end of a tape measure moves
The metal hook at the end of your tape measure isn’t loose due to poor manufacturing or wear and tear. Rather, this movement is a deliberate engineering feature that makes your measuring tool more versatile and accurate.
The purpose of the loose metal hook
That small metal tab at the end of your tape measure is designed to move slightly back and forth. The movement isn’t random or arbitrary—it’s precisely calibrated to move exactly the same distance as the thickness of the metal hook itself. Most tape measures are designed so this movement is approximately 1mm. This sliding mechanism is attached with small rivets that allow for a limited, specific range of motion that remains consistent throughout the life of your tape measure.
How it helps with accurate measurements
The genius of this design becomes clear when you understand how a tape measure is used for different types of measurements:
- Outside measurements: When measuring the exterior of an object (like a board’s length), the hook slides outward as you pull the tape, effectively adding its thickness to give you an accurate measurement.
- Inside measurements: When measuring interior spaces (like the inside of a doorframe), the hook compresses inward when pushed against a surface, subtracting its thickness from the measurement.
Without this movement, your measurements would be consistently off by exactly the thickness of the metal hook. This smart design ensures that whether you’re measuring from an inside corner or an outside edge, your readings remain precise.
Why it’s not a defect
Many DIYers and even professionals mistakenly assume this looseness indicates a worn-out or defective tape measure. Furthermore, some people attempt to “fix” this perceived problem by tightening the hook. This misconception leads to unnecessary repairs or replacements of perfectly functional tools.
The looseness isn’t something that happens over time—it’s built in from the beginning. Look closely at the start of your tape measure, and you’ll notice it’s actually 1/16th of an inch short. This seemingly odd calibration is intentional, compensating for the thickness of the metal hook.
Additionally, if you were to secure the hook rigidly, you’d actually be making your tape measure less accurate, as it would only work correctly for either inside or outside measurements, but not both.
How the moving end ensures accuracy
The genius of a tape measure’s moving end becomes clear when you actually use it for different measurement tasks. This movement isn’t random—it’s precisely calibrated to move exactly the same distance as the thickness of the metal hook itself, typically about 1mm.
Measuring outside edges
When measuring the outside of an object, such as the length of a board or wall, the hook naturally slides outward as you pull the tape. This movement allows the hook to hang over the edge of what you’re measuring. As a result, the measurement starts exactly at the edge, not at the hook’s connection point. Without this feature, every measurement would be short by the hook’s thickness—about 1/16 inch.
Measuring inside corners
While measuring inside spaces like doorframes or cabinet interiors, the hook compresses inward when pushed against a surface. This movement automatically subtracts the hook’s thickness from the measurement, ensuring accuracy. For particularly challenging inside corners, you can use alternatives like a 10-inch measuring block. Simply place the block in one corner, mark its end position, then measure from the opposite corner to your mark and add 10 inches.
Compensating for hook thickness
The moving end’s primary purpose is to automatically compensate for its own thickness during different measurement scenarios. Most quality tape measures are designed so the first inch appears slightly short—by exactly 1/16 inch. This seemingly odd calibration is intentional.
During manufacturing, tape measure accuracy is rigorously tested. According to NIST standards, a 6-foot tape should be accurate to within 1/32 inch for commercial use. High-quality tape measures are calibrated using laser interferometers that precisely measure distances along the tape.
Manufacturers deliberately create this “floating” hook that moves exactly the thickness of the metal piece itself. When the hook slides out for outside measurements, it adds its thickness to the reading. Conversely, when pushed in for inside measurements, it subtracts its thickness—making both readings accurate without any manual calculations.
If your tape measure hook has too much play or gets bent from being dropped, your measurements might be inaccurate. Some premium models, like Tajima G series, feature protective cases that shield the hook from damage.
Hidden features of the tape measure end
Most DIYers focus solely on the measurement markings of their tape measure, completely overlooking several ingenious features built into the metal end hook. Beyond its primary function of moving for accuracy, this small piece of metal hides multiple tools in plain sight.
The nail slot for one-person use
Look closely at your tape measure’s metal hook and you’ll notice a small hole or slot. This opening isn’t random—it’s specifically designed to hook onto the head of a nail or screw. This clever feature solves a common problem: measuring long distances without an assistant holding the other end.
To use this feature, simply hammer a nail partway into your work surface, then catch the nail head with the slot. This allows you to pull the tape back as far as needed while keeping the zero mark perfectly anchored. Moreover, this technique proves especially valuable when measuring from the center of a stud or marking out stud spacing every 16 inches.
The serrated edge for marking surfaces
Ever notice the jagged bottom edge on your tape measure’s hook? This serrated edge functions as a built-in scribing tool that can mark surfaces when you don’t have a pencil handy.
To use this feature:
- Hold the tape measure at your desired measurement point
- Press the serrated edge against your work surface
- Scratch back and forth to create a visible mark
- Continue with your cutting or drilling
This overlooked feature makes difficult measurements much easier, especially in tight spaces where marking with a pencil might be challenging.
Using the hook to draw circles
Perhaps the most surprising capability of the tape measure end is its use as a makeshift compass. The same nail slot that helps with one-person measuring transforms your tape into a precise circle-drawing tool.
First, insert a screw at your desired circle’s center point. Next, hook the metal end onto this center screw, extend the tape to your desired radius, and lock it in place. Then attach a pencil at that measurement point. Finally, rotate the tape measure around the center screw while keeping the pencil in contact with your surface—creating a perfect circle with your specified radius.
This technique works for circles of virtually any size, limited only by the length of your tape measure.
Other smart design elements you might miss
Beyond the clever moving end, tape measures contain several other ingenious design features that most people overlook. These elements showcase the thoughtful engineering behind this everyday tool.
Using the tape body for inside measurements
The body of your tape measure itself serves as a measuring tool. Take a close look at the side or bottom of your tape measure case—you’ll notice a small measurement printed there (typically around 3 to 3.5 inches). This number represents the exact width of your tape measure housing.
Instead of awkwardly bending your tape into corners, simply place the back of the tape measure body against one side of what you’re measuring, extend the tape until it touches the opposite side, then add the housing measurement printed on the case. For example, if you read 28⅝ inches on the tape and your housing measurement is 3 inches, your total measurement is 31⅝ inches.
The 16-inch stud mark
Have you noticed that certain numbers on your tape measure appear in red or are highlighted with special markings? These marks appear at 16-inch intervals (16, 32, 48, 64, 80, etc.) and serve a specific purpose.
This design element exists because in standard U.S. construction, wall studs are typically placed 16 inches “on center”—meaning the distance from the center of one stud to the center of the next is exactly 16 inches. Besides being a construction standard, this spacing allows for six supports in each 8-foot length, making it perfect for installing 8-foot plywood sheets without cutting.
Some tape measures also feature black diamonds at 19.2-inch intervals, which represent the standard spacing for roof trusses.
Double-sided printing for overhead use
High-quality tape measures often feature measurements printed on both sides of the blade. This seemingly small addition makes a significant difference when working overhead or in awkward spaces.
The underside typically features vertical reading scales, allowing you to read measurements easily when working above your head. Instead of craning your neck or removing the tape to see the measurement, you can simply read the numbers from below.
This feature proves especially valuable for electricians, plumbers, and others who frequently work in ceilings or other overhead locations.
Conclusion
Understanding why tape measure ends move reveals the remarkable thought put into this everyday tool. Throughout this guide, we’ve discovered that the seemingly loose metal hook serves a vital purpose. Far from being a defect, this deliberate design feature ensures accuracy whether measuring inside corners or outside edges.
This simple yet ingenious movement compensates exactly for the thickness of the metal hook itself. Consequently, your measurements remain precise regardless of the task at hand. Many DIYers mistakenly “fix” this movement, unknowingly making their tool less accurate.
Beyond the moving end, we’ve explored several hidden features that transform a basic tape measure into a multi-functional tool. The nail slot allows single-person measuring of long distances. Additionally, the serrated edge works as an impromptu marking tool, while the hook can help draw perfect circles when needed.
